Pacific Cove
R2820A3F-0
Total Area:
2820 sq. ft.

Garage Area:
750 sq. ft.

Garage Size:
3

Stories:
1

Bedrooms:
3

Full Baths:
2

Half Baths:
1

Width:
84'-0"

Depth:
67'-0"

Height
information button image
:
24'-6"

Foundation:
Crawl Space


Pacific Cove - Plan R2820A3F-0
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation
Pay Pal Image
All images are © copyrighted by Architects Northwest. Photographs, if shown, may have been modified to homeowner's preferences or site conditions.
Stately Facade Encloses Elegant Interior Spaces.  A stately residence designed with traditional and craftsman accents, the Pacific Cove combines an elegant façade with disciplined planning to create a serene and luxurious family home. The symmetrical front porch draws visitors into the columned and beamed foyer, lined with art and painting niches, adjacent to the formal dining room with its tray ceiling and butlery.  A diamond-shaped, columned vestibule accesses the work-at-home den, along with a private hall to two secondary bedrooms plus jack-and-jill bath. The center of the house is the spacious great room, enormous island kitchen and breakfast nook, opening onto the large covered BBQ porch. Another private hall leads to the laundry/mud room and 3-car garage, and finally, the crown jewel of the home – a master suite of unparalleled elegance, with a fireplace, a huge walk-in closet, deluxe five-fixture bathroom, and private covered patio with outdoor fireplace. The Pacific Cove is a truly special residence, crafted to provide timeless elegance and satisfaction for its owners.
MAIN FLOOR

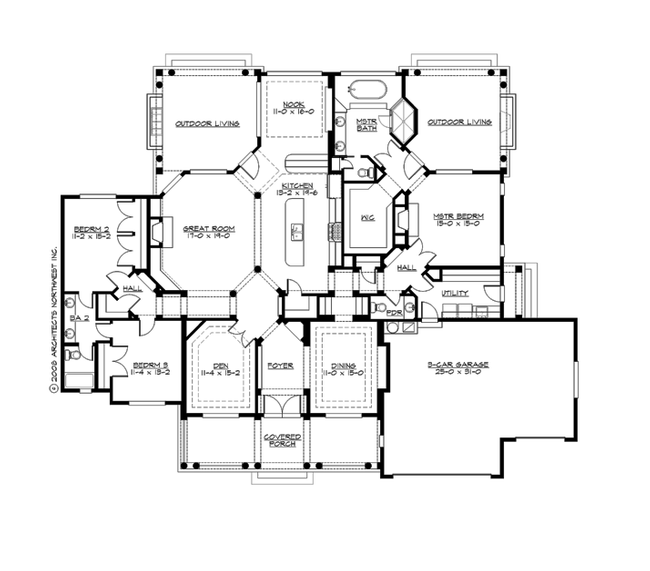

Main Floor Plan
MAIN FLOOR
PLAN DETAILS FOR THE Pacific Cove - Plan R2820A3F-0
Area Summary
Total Area:
2820 sq. ft.
Main Floor:
2820 sq. ft.
Garage Floor:
750 sq. ft.
Architectural Style
Farmhouse
Hampton
Shingle
Garage
Garage Size:
3
Garage Door Location:
Front
Foundation Type
Crawl Space

Roof Framing
Trusses
General Information
Stories:
1
Width:
84'-0"
Depth:
67'-0"
Height
information button image
:
24'-6"
Number of Rooms
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Roof Pitches
Primary:
8:12
Secondary:
6:12
Floor Load
Live (lbs):
40 PSF
Dead (lbs):
10 PSF

Wall Heights
Main:
10'-0"
Upper:
0'-0"
3rd Floor:
0'-0"
Lower:
0'-0"
Roof Load
Live (lbs):
25 PSF
Dead (lbs):
15 PSF
Wind:
85 MPH
Design Features
  • Den/Office
  • Front and Rear Porch
  • Great Room
  • Green Plan
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Rear
  • View Lot - Rear
  • Wide Lot
PLAN PRICING FOR THE Pacific Cove - Plan R2820A3F-0
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
