Mapleton
M3705A3F-0
Total Area:
3705 sq. ft.

Garage Area:
685 sq. ft.

Garage Size:
3

Stories:
2

Bedrooms:
4

Full Baths:
3

Width:
62'-0"

Depth:
52'-0"

Height:
30'-0"

Foundation:
Crawl Space


Mapleton - Plan M3705A3F-0
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation
All images are © copyrighted by Architects Northwest. Photographs, if shown, may have been modified to homeowner's preferences or site conditions.
MAIN FLOOR

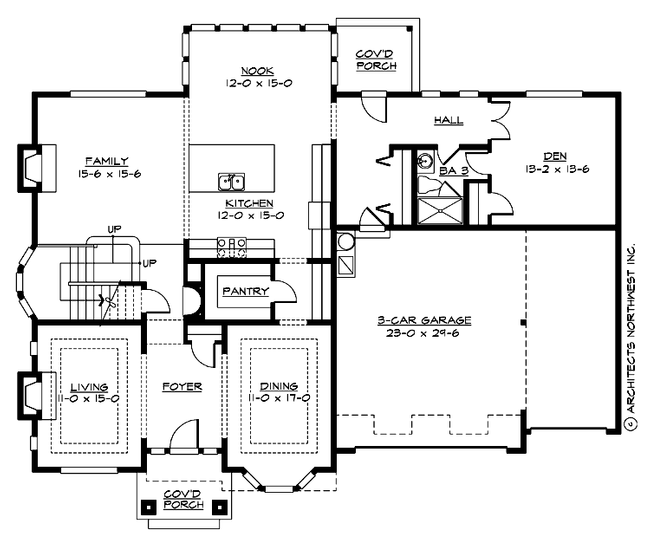

Main Floor Plan
MAIN FLOOR
UPPER FLOOR

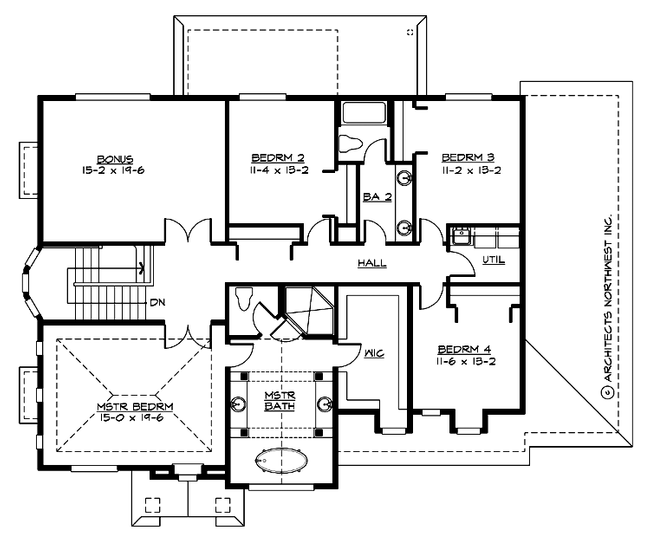

Upper Floor Plan
UPPER FLOOR
PLAN DETAILS FOR THE Mapleton - Plan M3705A3F-0
Area Summary
Total Area:
3705 sq. ft.
Main Floor:
1823 sq. ft.
Upper Floor:
1882 sq. ft.
Garage Floor:
685 sq. ft.
Architectural Style
Hampton
Shingle
Traditional
Garage
Garage Size:
3
Garage Door Location:
Front
Foundation Type
Crawl Space

Roof Framing
Trusses
General Information
Stories:
2
Width:
62'-0"
Depth:
52'-0"
Height:
30'-0"
Number of Rooms
Bedrooms:
4
Full Baths:
3
Roof Pitches
Primary:
8:12
Floor Load
Live (lbs):
40 PSF
Dead (lbs):
10 PSF

Wall Heights
Main:
9'-0"
Upper:
8'-0"
Roof Load
Live (lbs):
25 PSF
Dead (lbs):
15 PSF
Wind:
85 MPH
Design Features
  • Bonus Space @ Upper Floor
  • Den/Office
  • Laundry Room @ Upper Floor
  • Living & Family Room
  • Master Bedroom @ Upper Floor Front
  • View Lot - Front
  • Wide Lot
