Shingleville
M2565A2F-15
Total Area:
2893 sq. ft.

Garage Area:
384 sq. ft.

Garage Size:
2

Stories:
2

Bedrooms:
3

Full Baths:
2

Half Baths:
1

Width:
52'-0"

Depth:
45'-6"

Height
information button image
:
26'-6"

Foundation:
Crawl Space


Shingleville - Plan M2565A2F-15

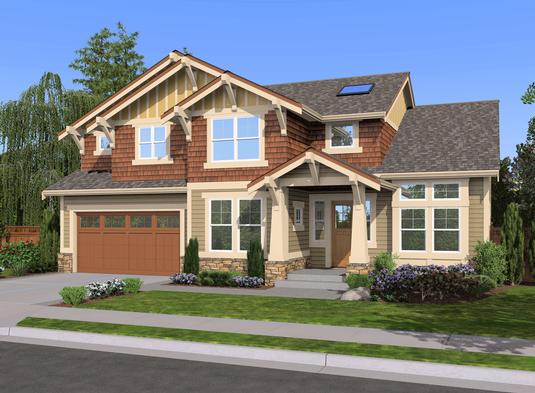

Front Rendering

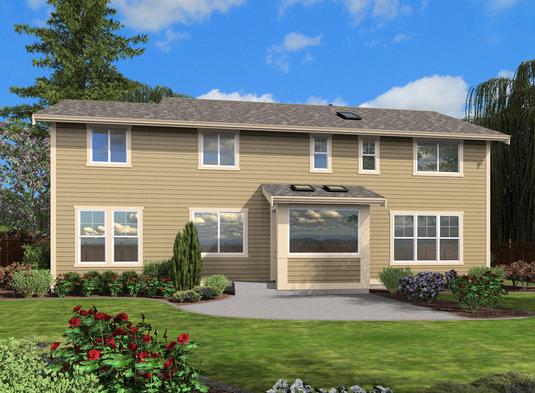

Rear Rendering
Pay Pal Image
All images are © copyrighted by Architects Northwest. Photographs, if shown, may have been modified to homeowner's preferences or site conditions.
MAIN FLOOR

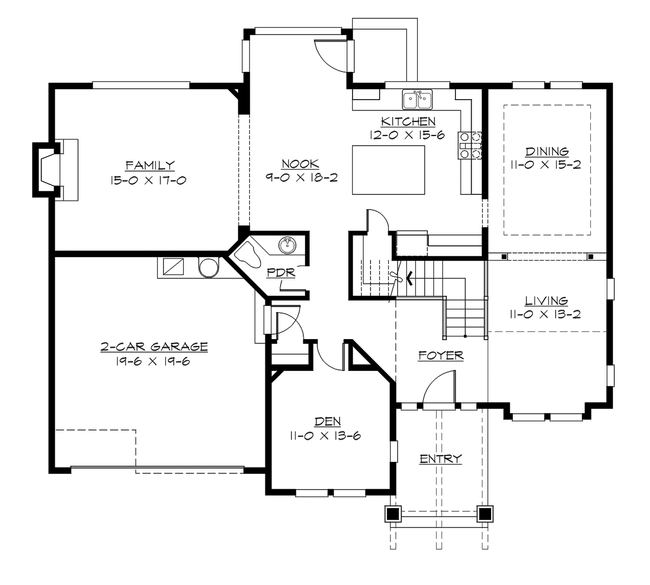

Main Floor Plan
MAIN FLOOR
UPPER FLOOR

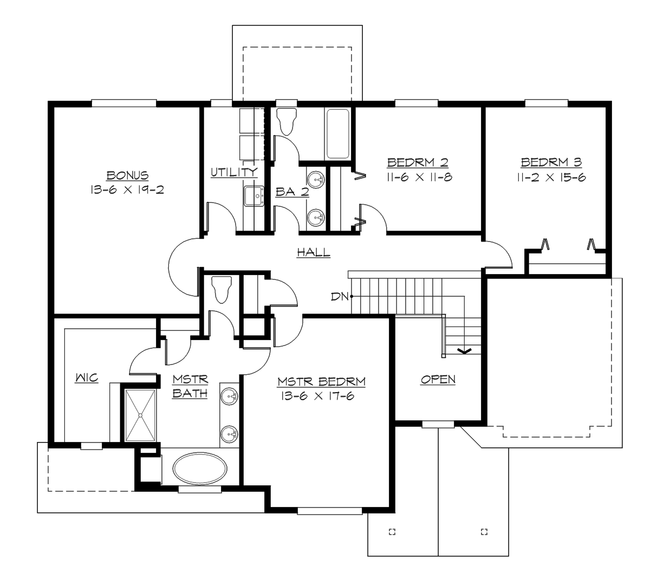

Upper Floor Plan
UPPER FLOOR
PLAN DETAILS FOR THE Shingleville - Plan M2565A2F-15
Area Summary
Total Area:
2893 sq. ft.
Main Floor:
1440 sq. ft.
Upper Floor:
1453 sq. ft.
Garage Floor:
384 sq. ft.
Architectural Style
Craftsman
Northwest
Shingle
Garage
Garage Size:
2
Garage Door Location:
Front
Foundation Type
Crawl Space

Roof Framing
Trusses
General Information
Stories:
2
Width:
52'-0"
Depth:
45'-6"
Height
information button image
:
26'-6"
Number of Rooms
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Roof Pitches
Primary:
6:12
Floor Load
Live (lbs):
40 PSF
Dead (lbs):
10 PSF

Wall Heights
Main:
9'-0"
Upper:
8'-0"
Roof Load
Live (lbs):
25 PSF
Dead (lbs):
15 PSF
Wind:
85 MPH
Design Features
  • Bonus Space @ Upper Floor
  • Den/Office
  • Laundry Room @ Upper Floor
  • Living & Family Room
  • Master Bedroom @ Upper Floor
  • Small Plan
  • View Lot - Rear

SIMILAR PLANS TO THE Shingleville - Plan M2565A2F-15
PLAN PRICING FOR THE Shingleville - Plan M2565A2F-15
Please enter your zip code, then select the Go! button to view pricing information for this house plan.
