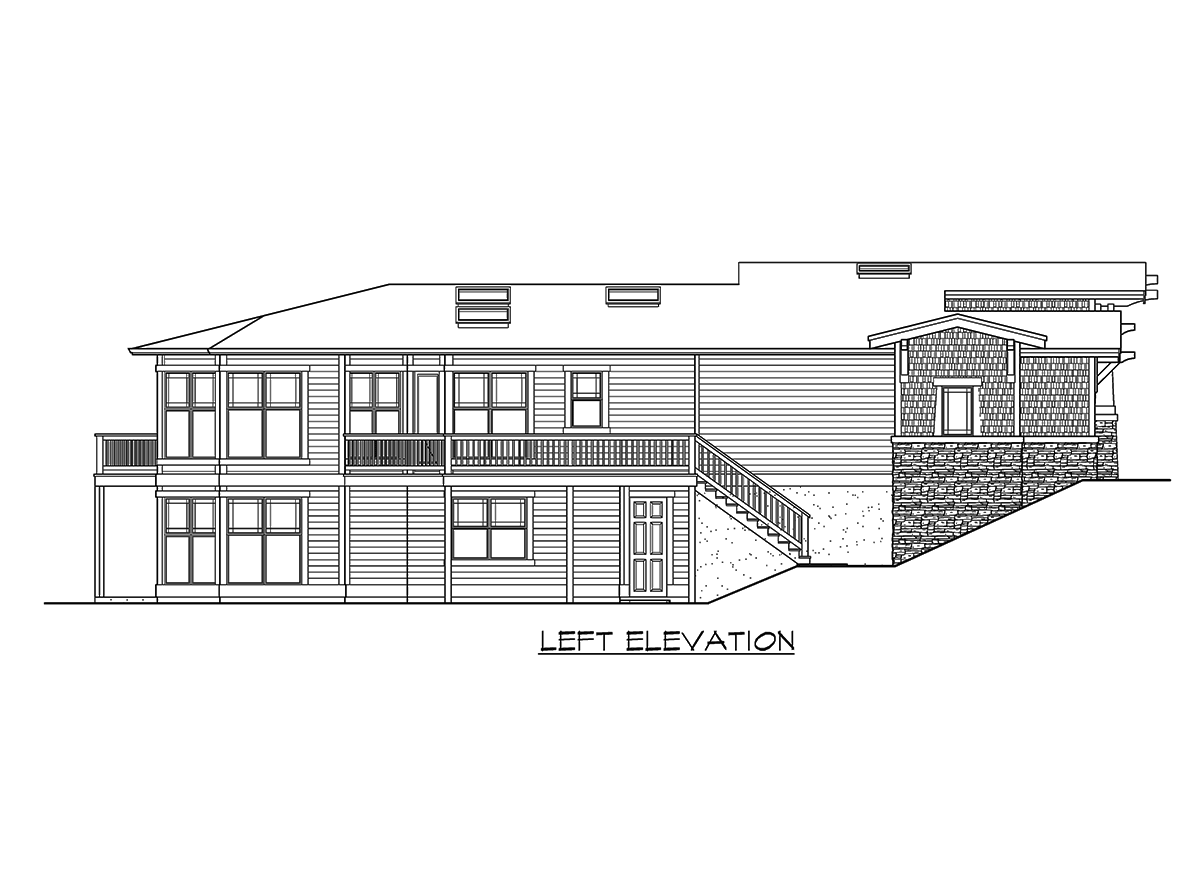

Left Elevation

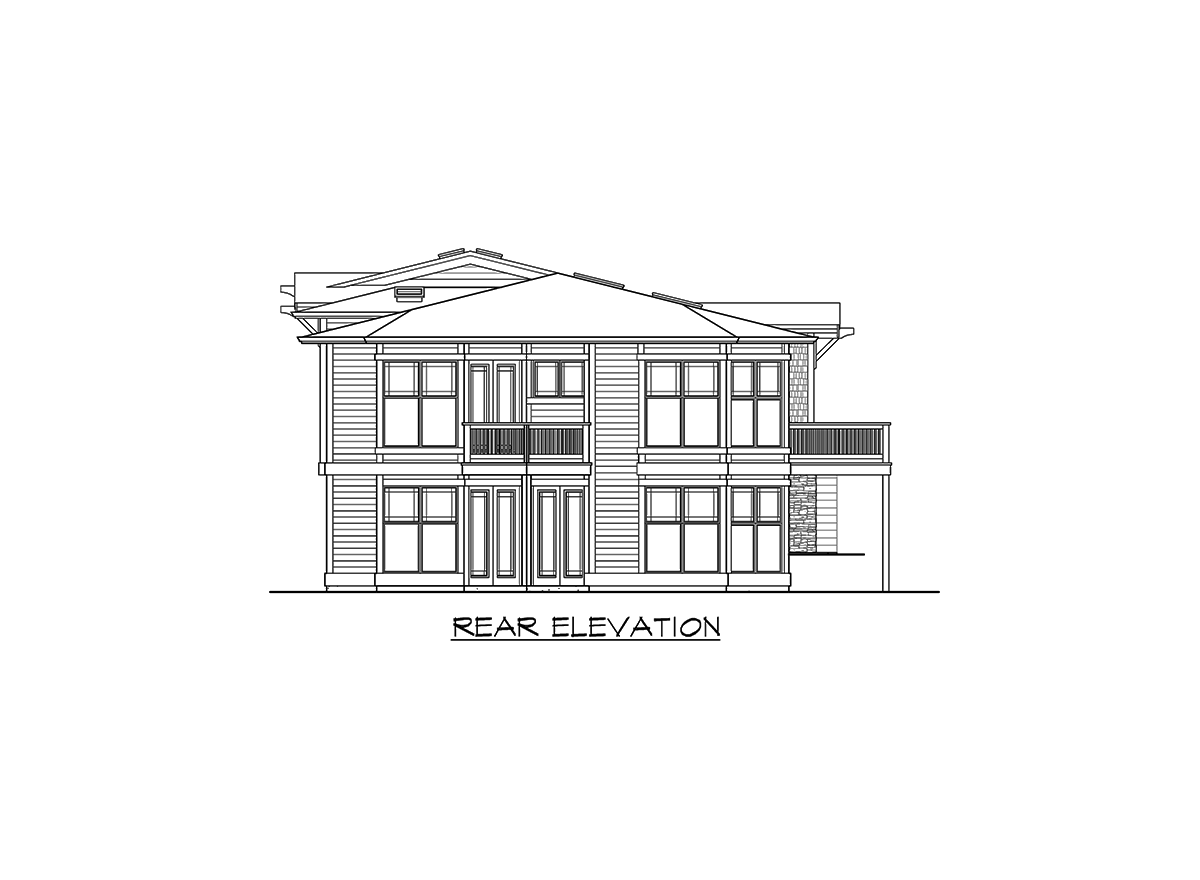

Rear Elevation

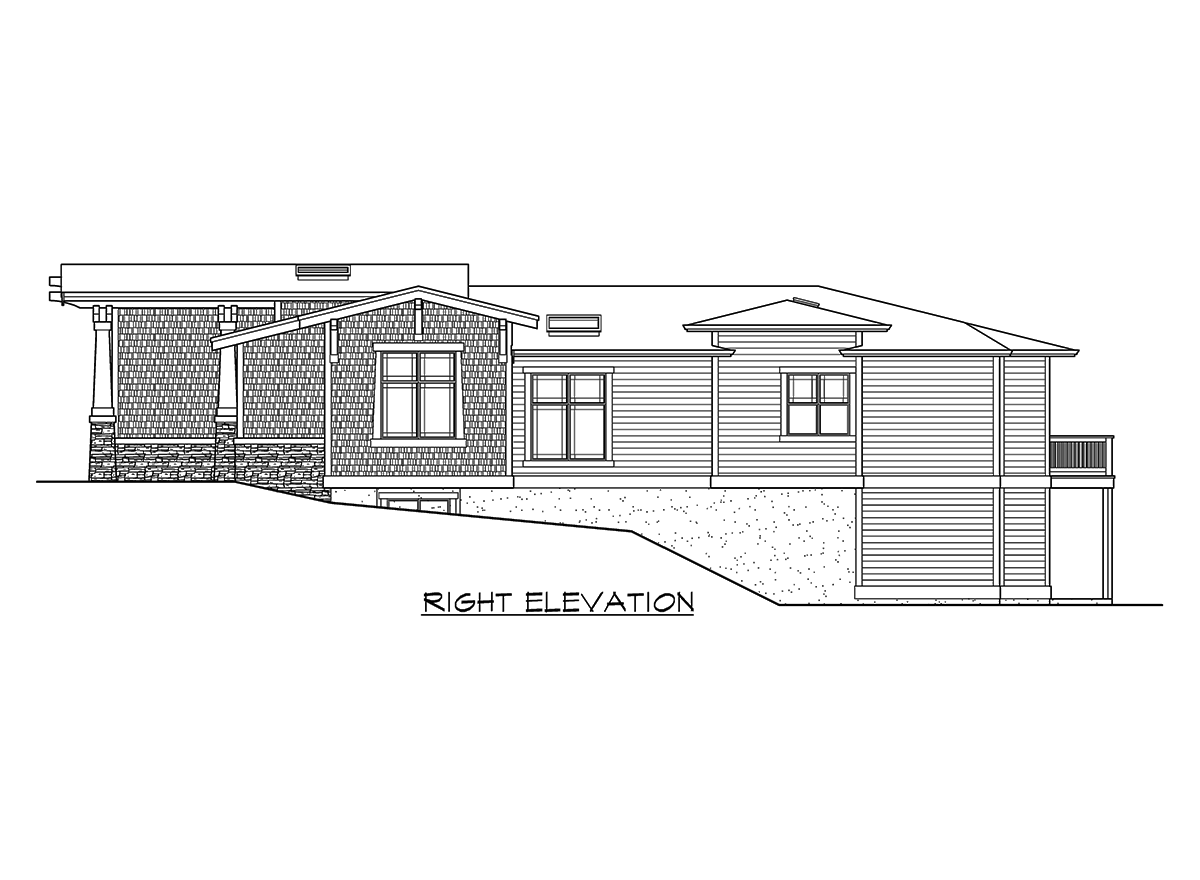

Right Elevation
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

JACKSON

R3495B4FT-1DB
  • Total Area:3495 Sq. Ft.
  • Garage Area:642 Sq Ft
  • Garage Size:4
  • Stories:2
  • Bedrooms:4
  • Full Baths:4
  • Half Baths:1
  • Width:39'-0"
  • Depth:82'-0"
  • Height:17'-0"
  • Foundation:Basement
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

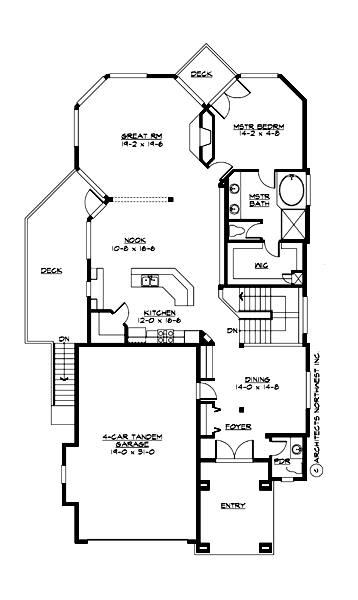

R3495B4FT-1DB Jackson Main Floor
Main Floor
R3495B4FT-1DB Jackson Lower Floor
Lower Floor
PLAN DETAILS FOR THE JACKSON - PLAN R3495B4FT-1DB
Area Summary
  • Total Area:3495 Sq. Ft.
  • Main Floor:1752 Sq. Ft.
  • Lower Floor:1743 Sq. Ft.
  • Garage Floor:642 Sq. Ft.
General Information
  • Stories:2
  • Width:39'-0"
  • Depth:82'-0"
  • Height:17'-0"
Architectural Style
  • Bungalow
  • Craftsman
  • Northwest
Number of Rooms
  • Bedrooms:4
  • Full Baths:4
  • Half Baths:1
Garage
  • Garage Size:4
  • Garage Door Location:Front
  • Garage Type: Tandem
Roof Pitches
  • Primary:3:12
Wall Heights
  • Main:10'-0"
  • Lower:9'-0"
Foundation Type
  • Daylight Basement
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Lower Floor
  • Rear Porch
  • Great Room
  • Laundry Room @ & Lower Floor
  • Master Bedroom @ Main Floor Rear
  • Bungalow House Plans
  • Craftsman House Plans
  • Northwest Floor Plans
  • Narrow Lot House Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
