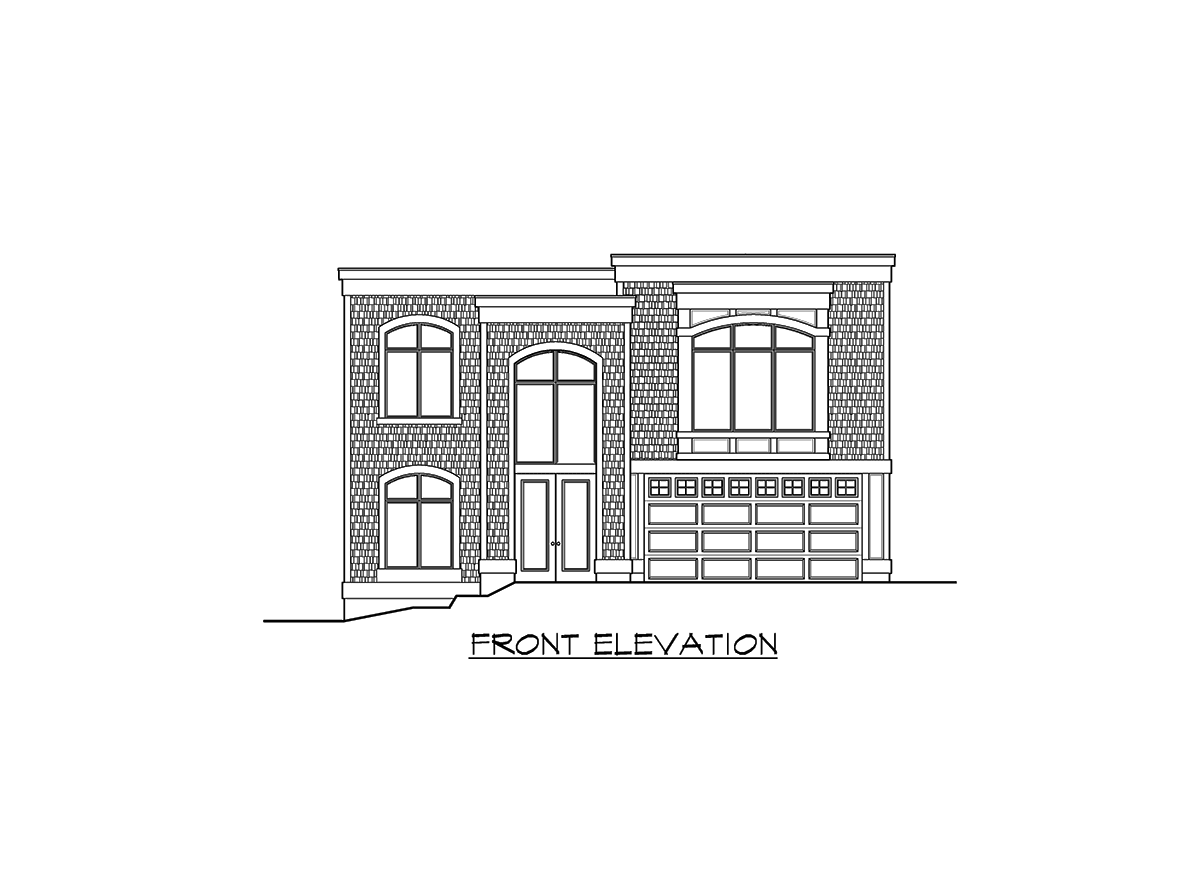

Front Elevation
Left Elevation
Rear Elevation

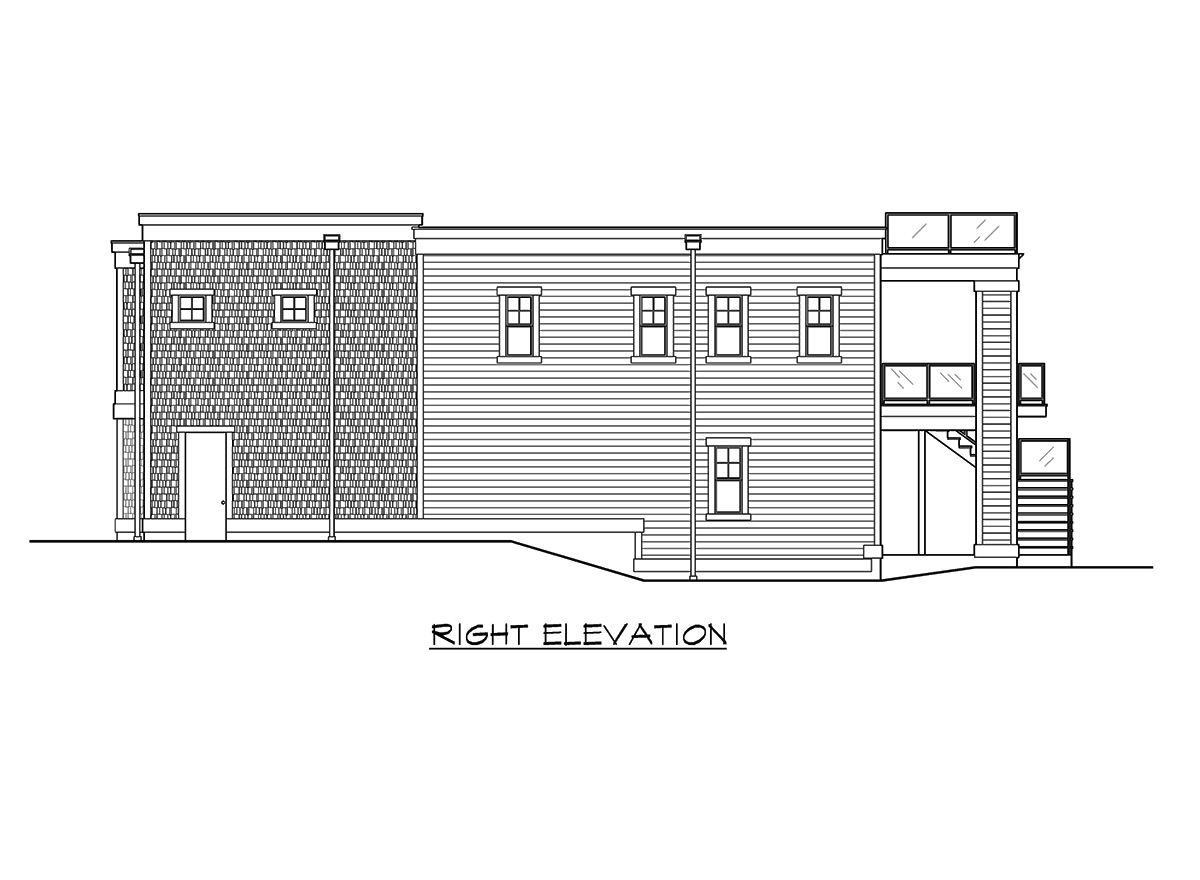

Right Elevation
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

ARNOLD

M3351B3FT-0
  • Total Area:3351 Sq. Ft.
  • Garage Area:599 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Width:40'-0"
  • Depth:66'-0"
  • Height:24'-0"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan
M3351B3FT-0 Arnold Main Floor
Main Floor
M3351B3FT-0 Arnold Upper Floor
Upper Floor
PLAN DETAILS FOR THE ARNOLD - PLAN M3351B3FT-0
Area Summary
  • Total Area:3351 Sq. Ft.
  • Main Floor:1442 Sq. Ft.
  • Upper Floor:1909 Sq. Ft.
  • Garage Floor:599 Sq. Ft.
General Information
  • Stories:2
  • Width:40'-0"
  • Depth:66'-0"
  • Height:24'-0"
Architectural Style
  • Contemporary
  • Northwest
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
Garage
  • Garage Size:3
  • Garage Door Location:Front
  • Garage Type: Tandem
Roof Pitches
  • Primary:1:12
Wall Heights
  • Main:10'-0"
  • Upper:10'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Stick
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Rear
  • Contemporary Home Plans
  • Northwest Floor Plans
  • Shingle House Plans
  • Narrow Lot House Plans
  • View Lot (Rear) Plans
