Front Rendering
Front Elevation

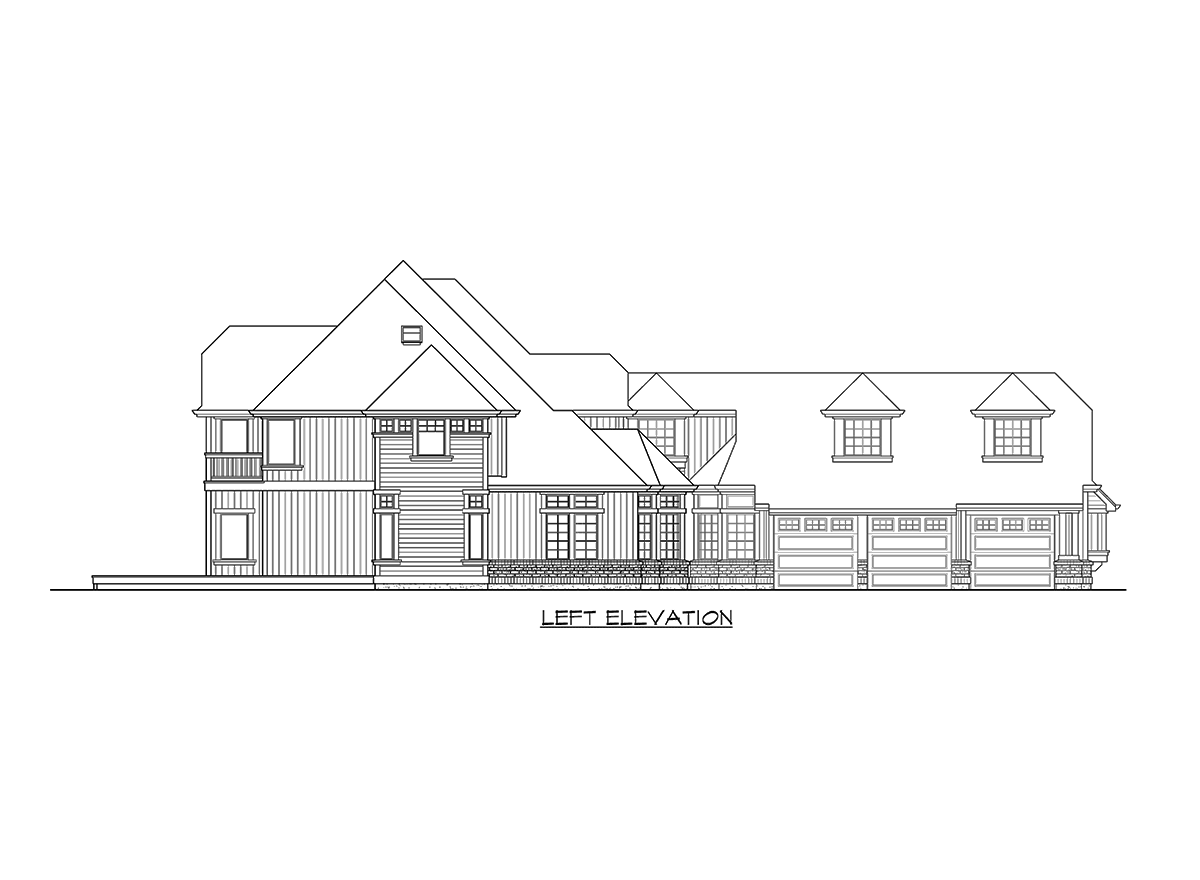

Left Elevation

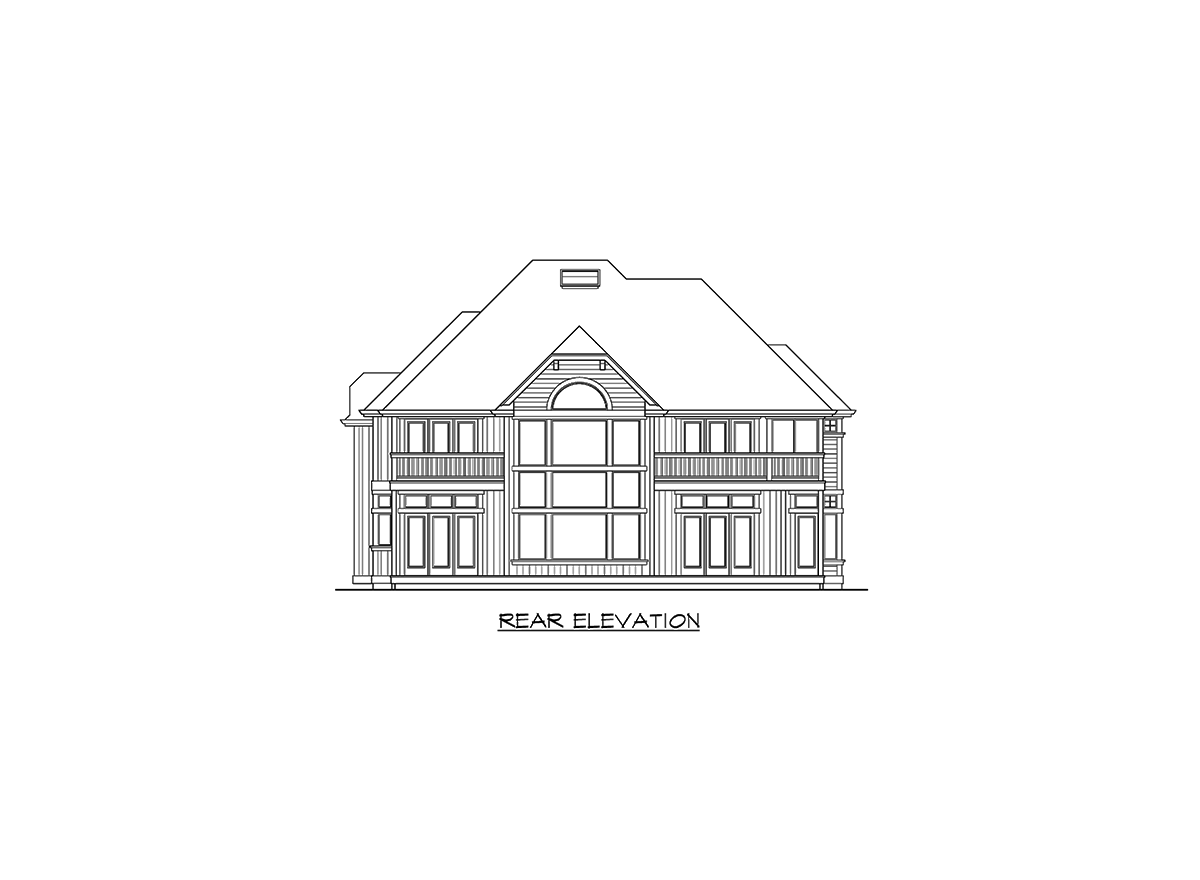

Rear Elevation

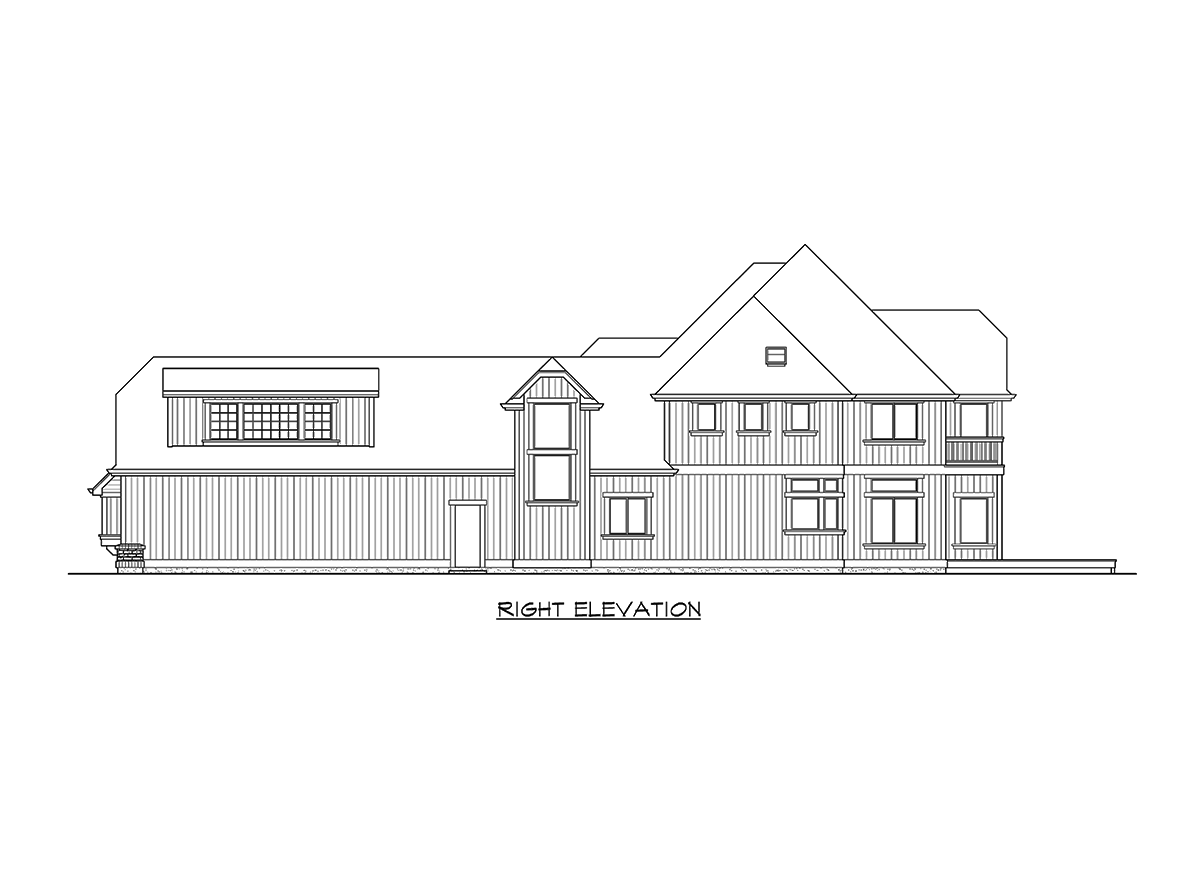

Right Elevation
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

BROADMOOR

M3750A3S-0
  • Total Area:3750 Sq. Ft.
  • Garage Area:990 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Width:50'-0"
  • Depth:96'-0"
  • Height:33'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

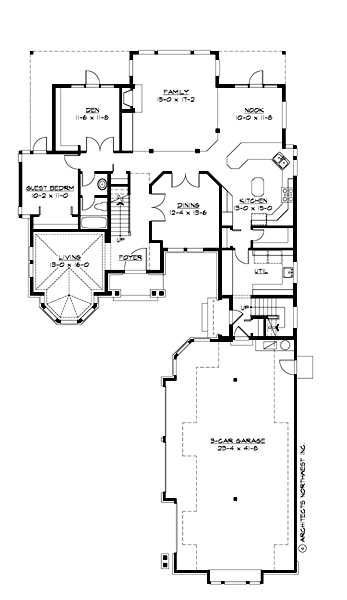

M3750A3S-0 Broadmoor Main Floor
Main Floor
M3750A3S-0 Broadmoor Upper Floor
Upper Floor
PLAN DETAILS FOR THE BROADMOOR - PLAN M3750A3S-0
Area Summary
  • Total Area:3750 Sq. Ft.
  • Main Floor:1880 Sq. Ft.
  • Upper Floor:1870 Sq. Ft.
  • Garage Floor:990 Sq. Ft.
General Information
  • Stories:2
  • Width:50'-0"
  • Depth:96'-0"
  • Height:33'-6"
Architectural Style
  • Chateau
  • Craftsman
  • Lodge
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
Garage
  • Garage Size:3
  • Garage Door Location:Side
Roof Pitches
  • Primary:12:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Stick
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Rear
  • Chateau House Plans
  • Craftsman House Plans
  • Lodge House Plans
  • Narrow Lot House Plans
