Front Rendering

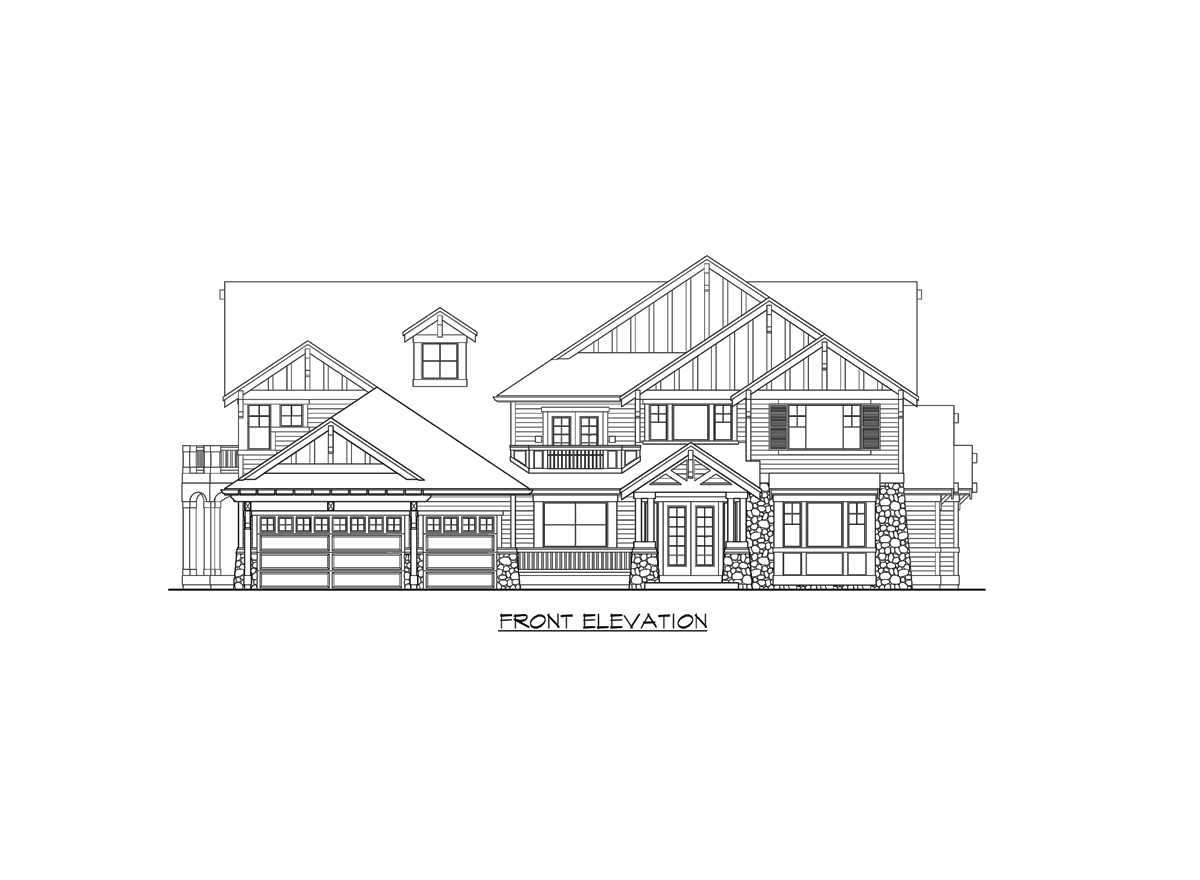

Front Elevation
Left Elevation
Rear Elevation

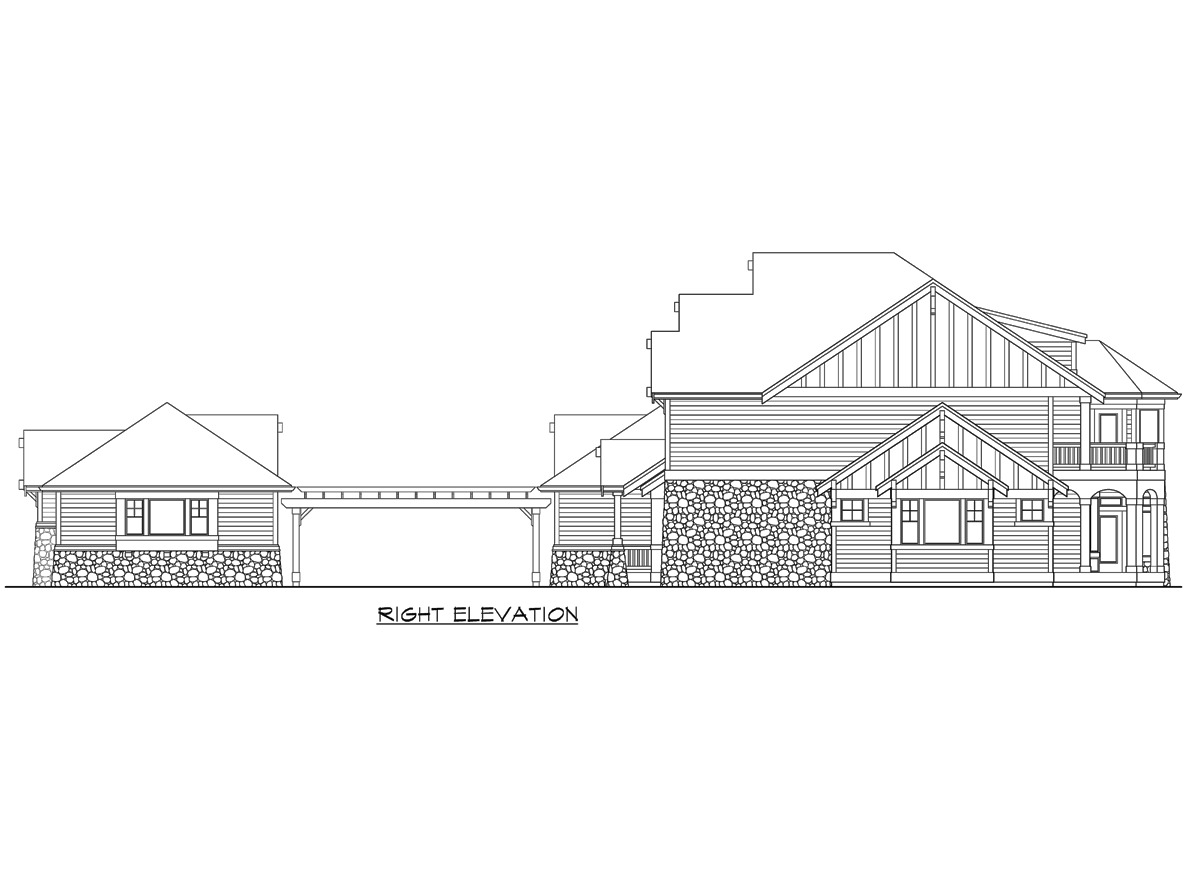

Right Elevation

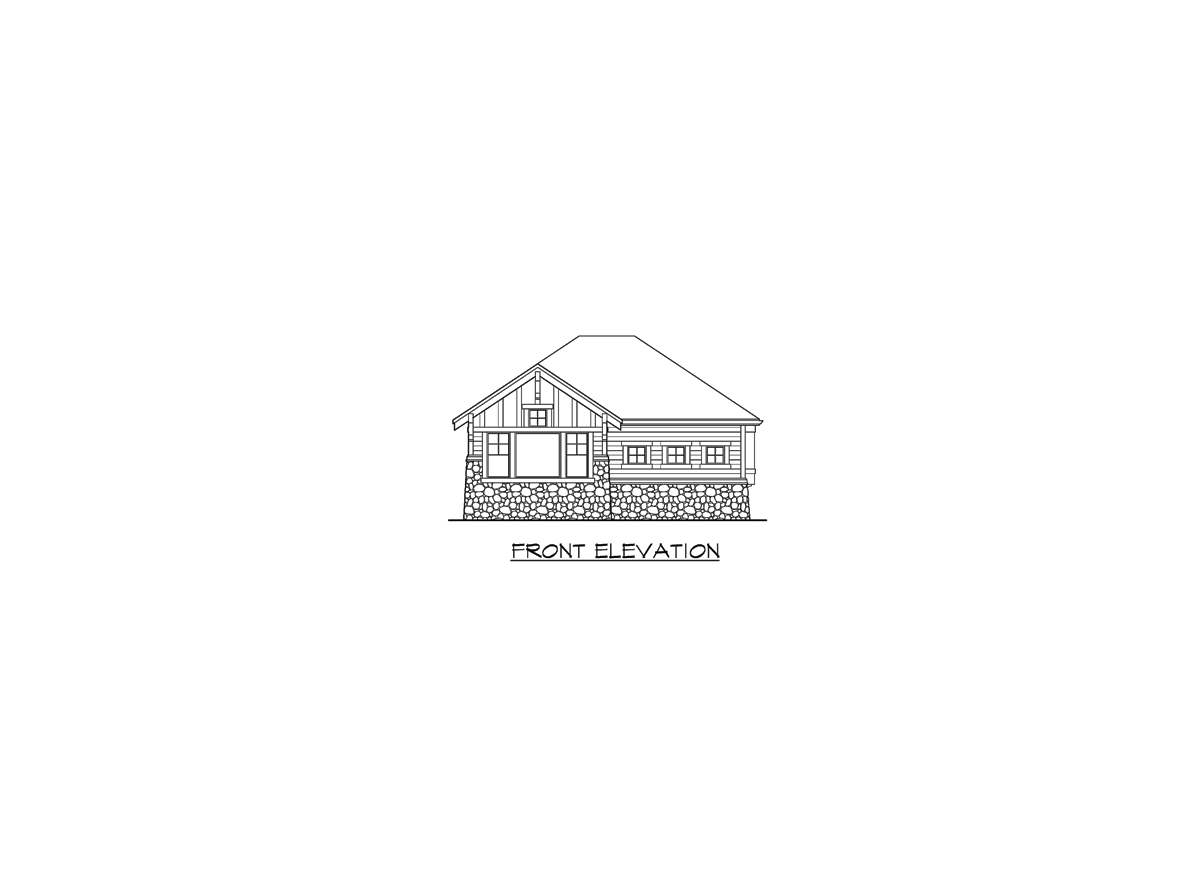

Front Elevation - Garage
Rear Elevation - Garage
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation
Front Elevation - Garage
Rear Elevation - Garage

Plan Pricing

$0

HARRISON

M4950A3F3D-0
  • Total Area:4950 Sq. Ft.
  • Garage Area:1538 Sq Ft
  • Garage Size:5+
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
  • Width:78'-0"
  • Depth:66'-0"
  • Height:34'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

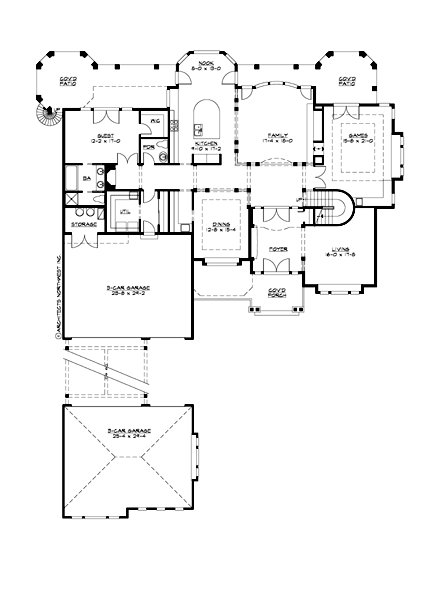

M4950A3F3D-0 Harrison Main Floor
Main Floor

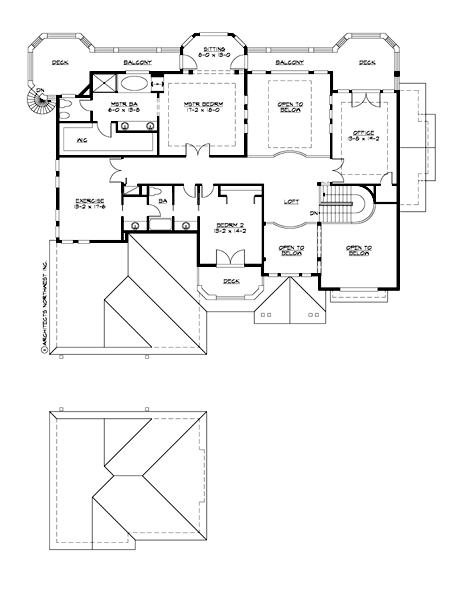

M4950A3F3D-0 Harrison Upper Floor
Upper Floor
PLAN DETAILS FOR THE HARRISON - PLAN M4950A3F3D-0
Area Summary
  • Total Area:4950 Sq. Ft.
  • Main Floor:2845 Sq. Ft.
  • Upper Floor:2105 Sq. Ft.
  • Garage Floor:1538 Sq. Ft.
General Information
  • Stories:2
  • Width:78'-0"
  • Depth:66'-0"
  • Height:34'-6"
Architectural Style
  • Craftsman
  • Lodge
  • Northwest
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
Garage
  • Garage Size:5+
  • Garage Door Location:Front
  • Garage Type: Detached
Roof Pitches
  • Primary:8:12
Wall Heights
  • Main:10'-0"
  • Upper:9'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ Main & Upper Floor
  • Den/Office
  • Front Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Lodge House Plans
  • Northwest Floor Plans
  • View Lot (Rear) Plans
  • Wide Lot House Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
