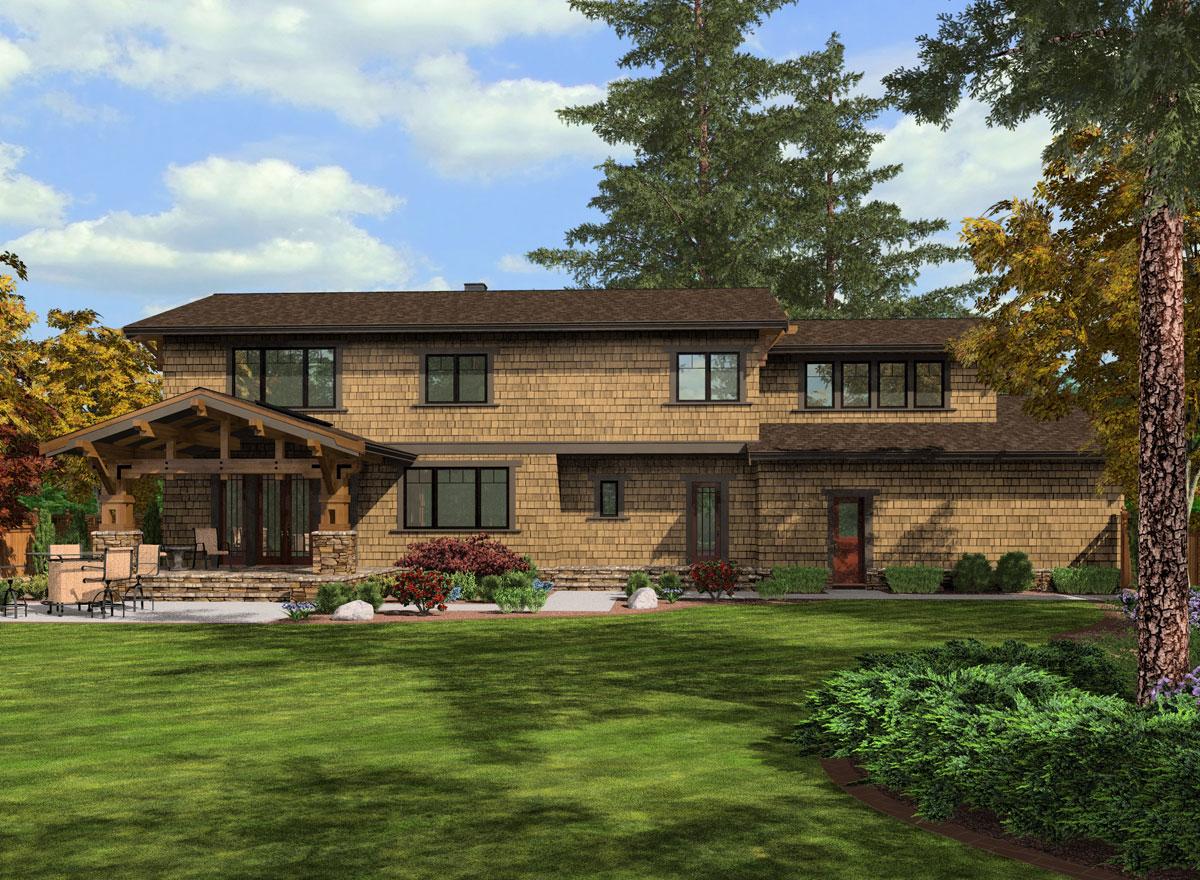

Rear Rendering
Front Elevation
Left Elevation
Rear Elevation

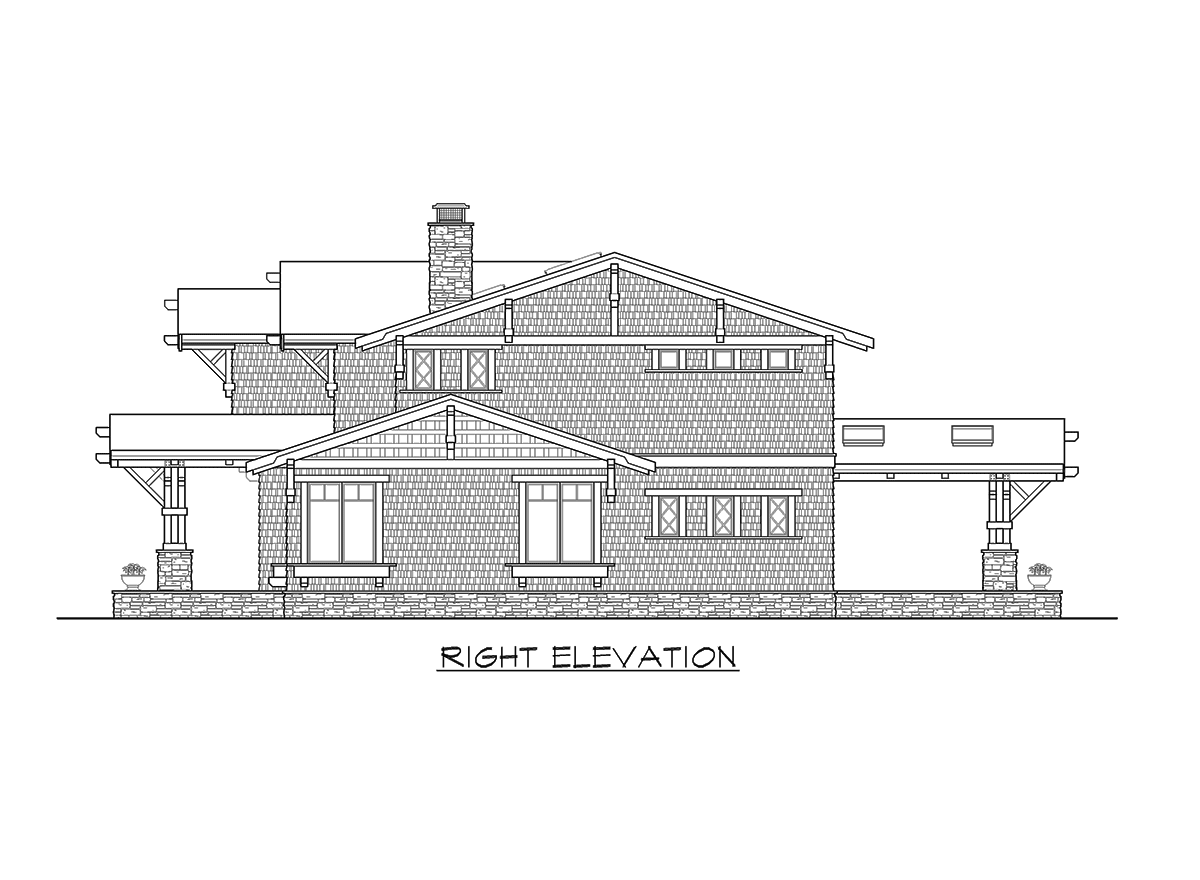

Right Elevation
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

SAWGRASS

M3850A3S-0
  • Total Area:3850 Sq. Ft.
  • Garage Area:895 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Width:76'-0"
  • Depth:62'-0"
  • Height:25'-0"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan
M3850A3S-0 Sawgrass Main Floor
Main Floor
M3850A3S-0 Sawgrass Upper Floor
Upper Floor
PLAN DETAILS FOR THE SAWGRASS - PLAN M3850A3S-0
Area Summary
  • Total Area:3850 Sq. Ft.
  • Main Floor:1865 Sq. Ft.
  • Upper Floor:1985 Sq. Ft.
  • Garage Floor:895 Sq. Ft.
General Information
  • Stories:2
  • Width:76'-0"
  • Depth:62'-0"
  • Height:25'-0"
Architectural Style
  • Bungalow
  • Craftsman
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
Garage
  • Garage Size:3
  • Garage Door Location:Side
Roof Pitches
  • Primary:4:12
Wall Heights
  • Main:9'-0"
  • Upper:9'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Rear
  • Bungalow House Plans
  • Craftsman House Plans
  • Shingle House Plans
  • Wide Lot House Plans
Front Rendering

Sawgrass Companion

A1260A3F-0
  • Total Area:1260 Sq. Ft.
  • Stories:2
  • Bedrooms:3
  • Full Baths:1
View More
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
