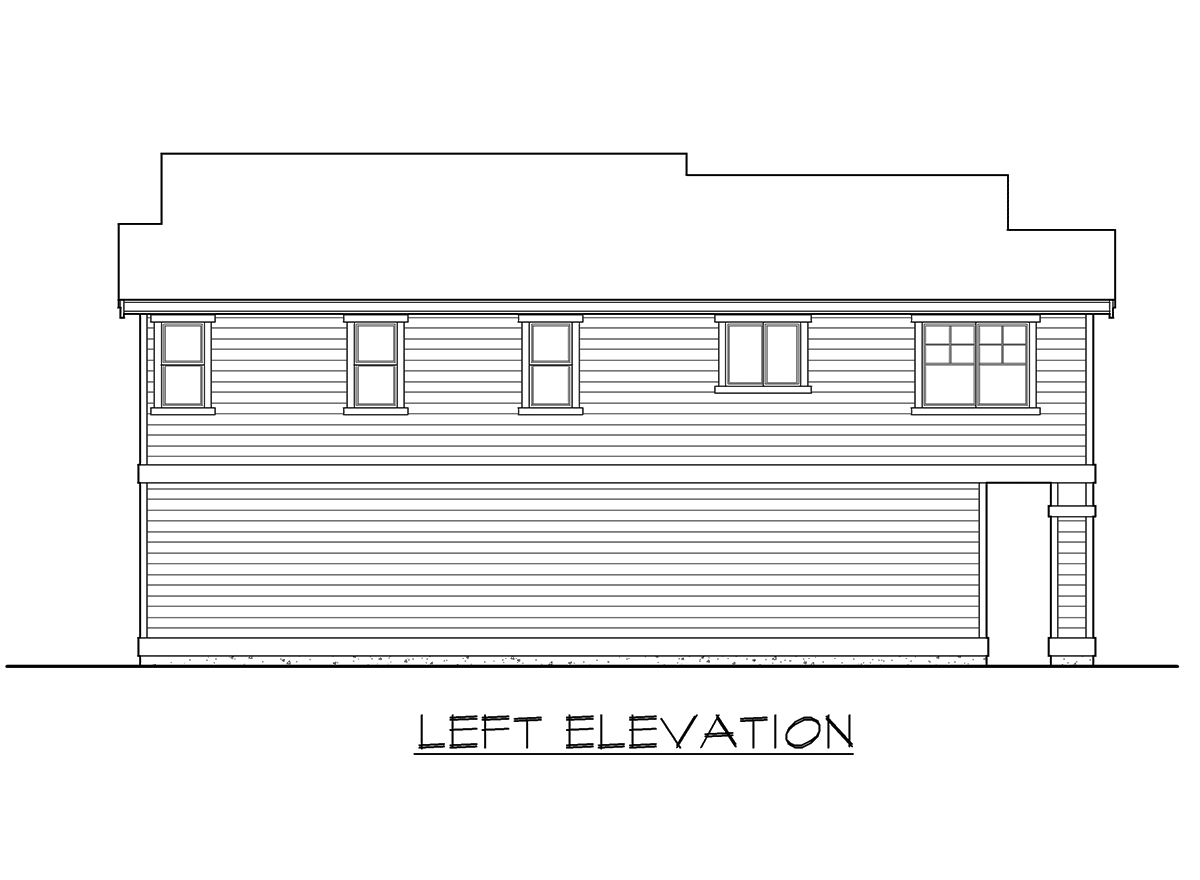

Left Elevation

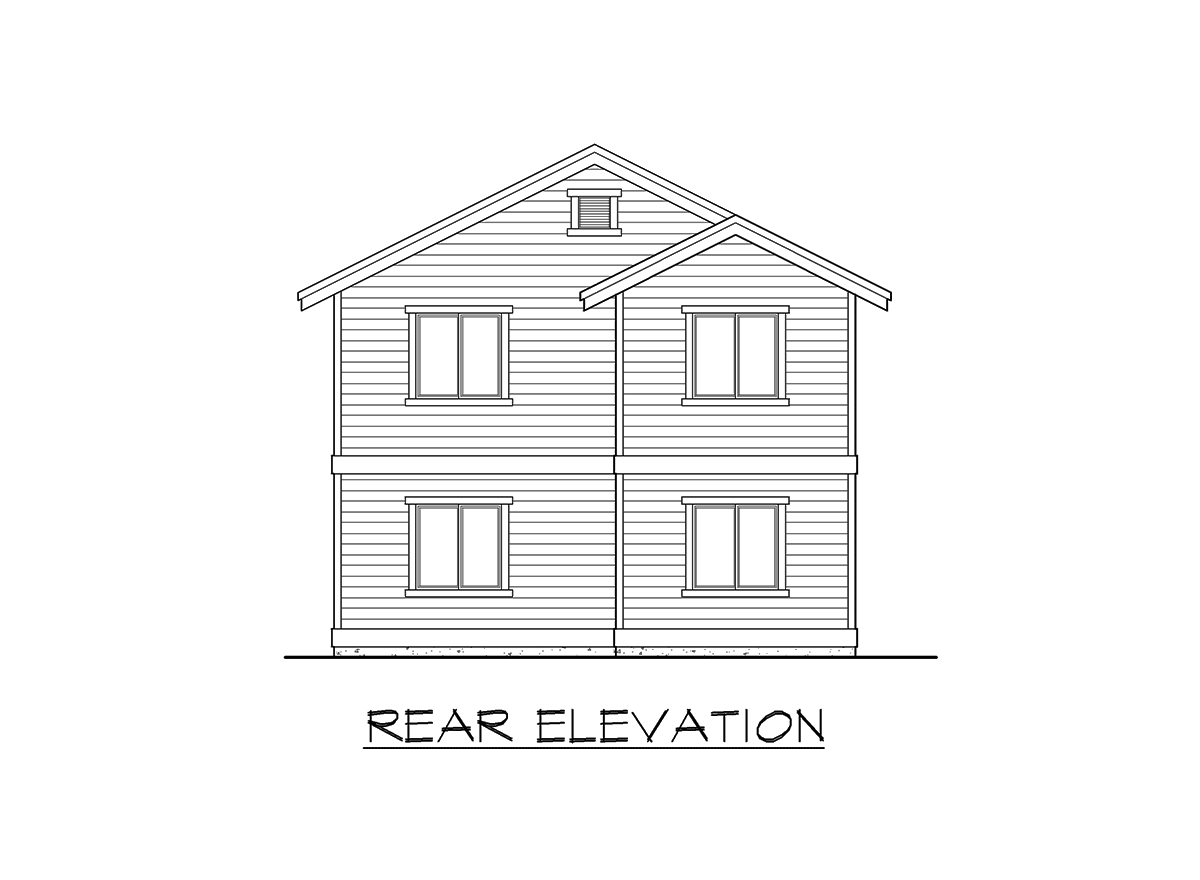

Rear Elevation

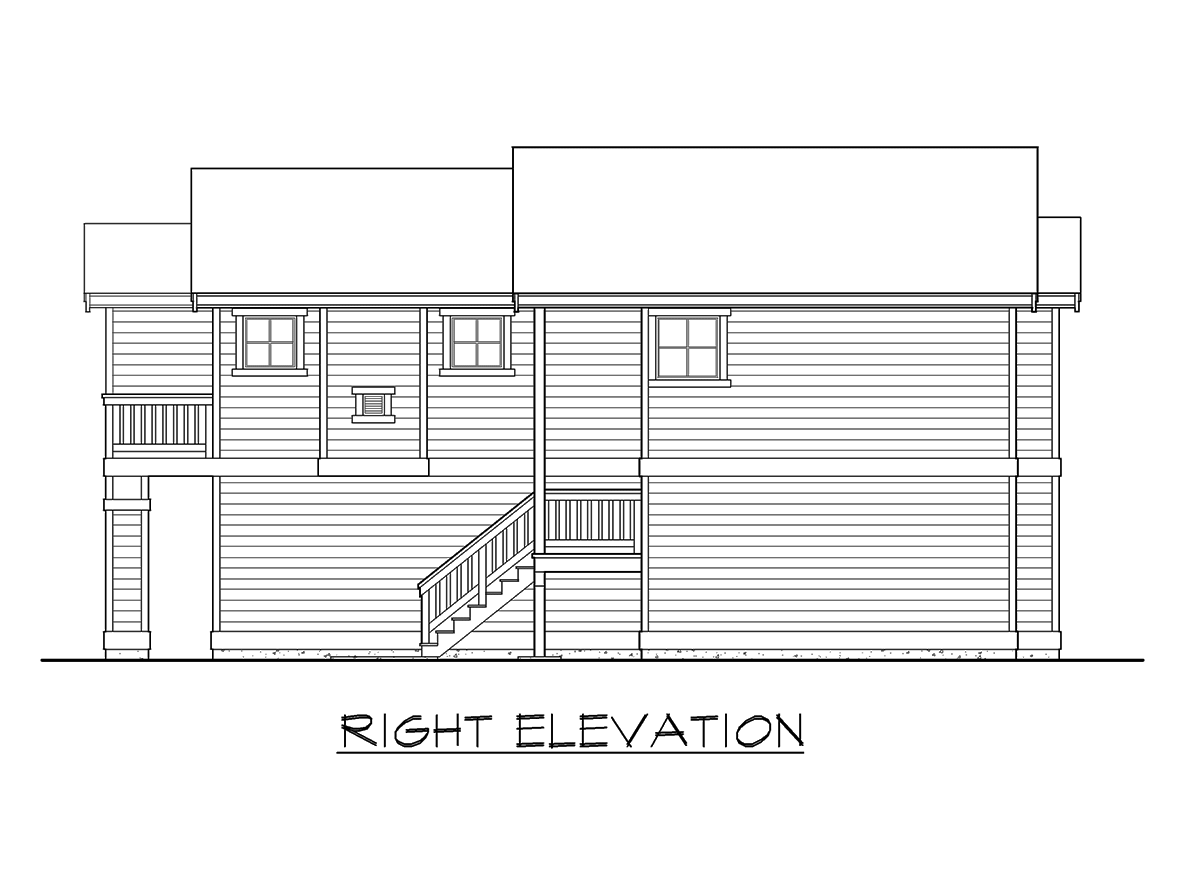

Right Elevation
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

MAYFIELD

S1337A2F-0
  • Total Area:1337 Sq. Ft.
  • Garage Area:423 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Width:24'-6"
  • Depth:44'-6"
  • Height:24'-6"
  • Foundation:Slab
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

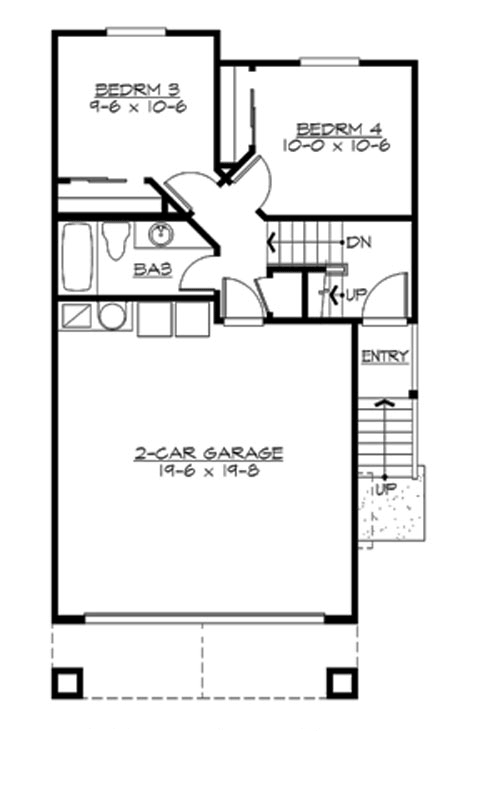

S1337A2F-0 Mayfield Main Floor
Main Floor
S1337A2F-0 Mayfield Upper Floor
Upper Floor
PLAN DETAILS FOR THE MAYFIELD - PLAN S1337A2F-0
Area Summary
  • Total Area:1337 Sq. Ft.
  • Main Floor:905 Sq. Ft.
  • Lower Floor:432 Sq. Ft.
  • Garage Floor:423 Sq. Ft.
General Information
  • Stories:2
  • Width:24'-6"
  • Depth:44'-6"
  • Height:24'-6"
Architectural Style
  • Northwest
  • Ranch
  • Shotgun
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:8'-0"
  • Lower:8'-0"
Foundation Type
  • Slab On Grade
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ & Lower Floor
  • Master Bedroom @ Main Floor Rear
  • Northwest Floor Plans
  • Ranch House Plans
  • Shotgun Floor Plans
  • Affordable Home Designs
  • Narrow Lot House Plans
